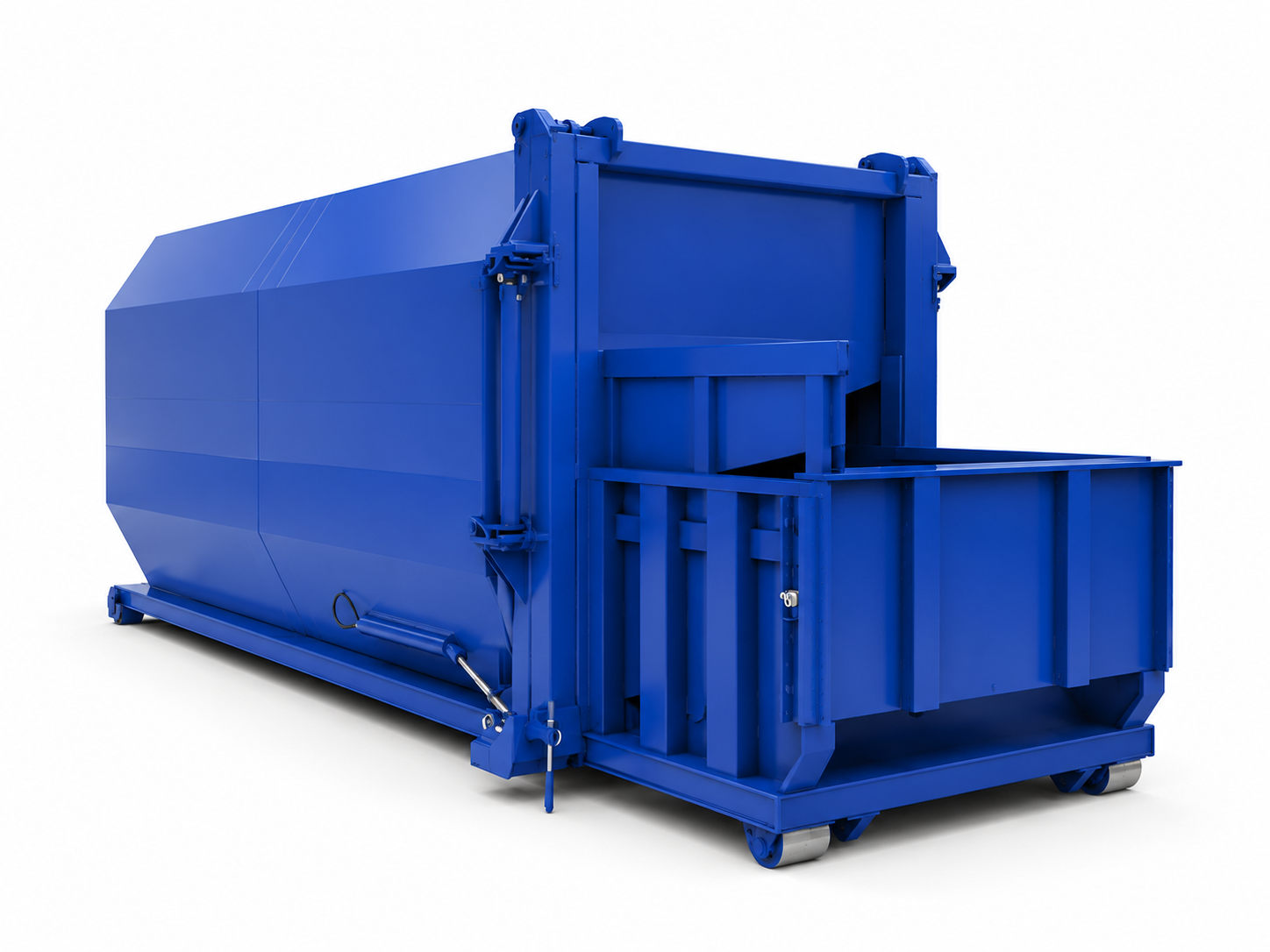

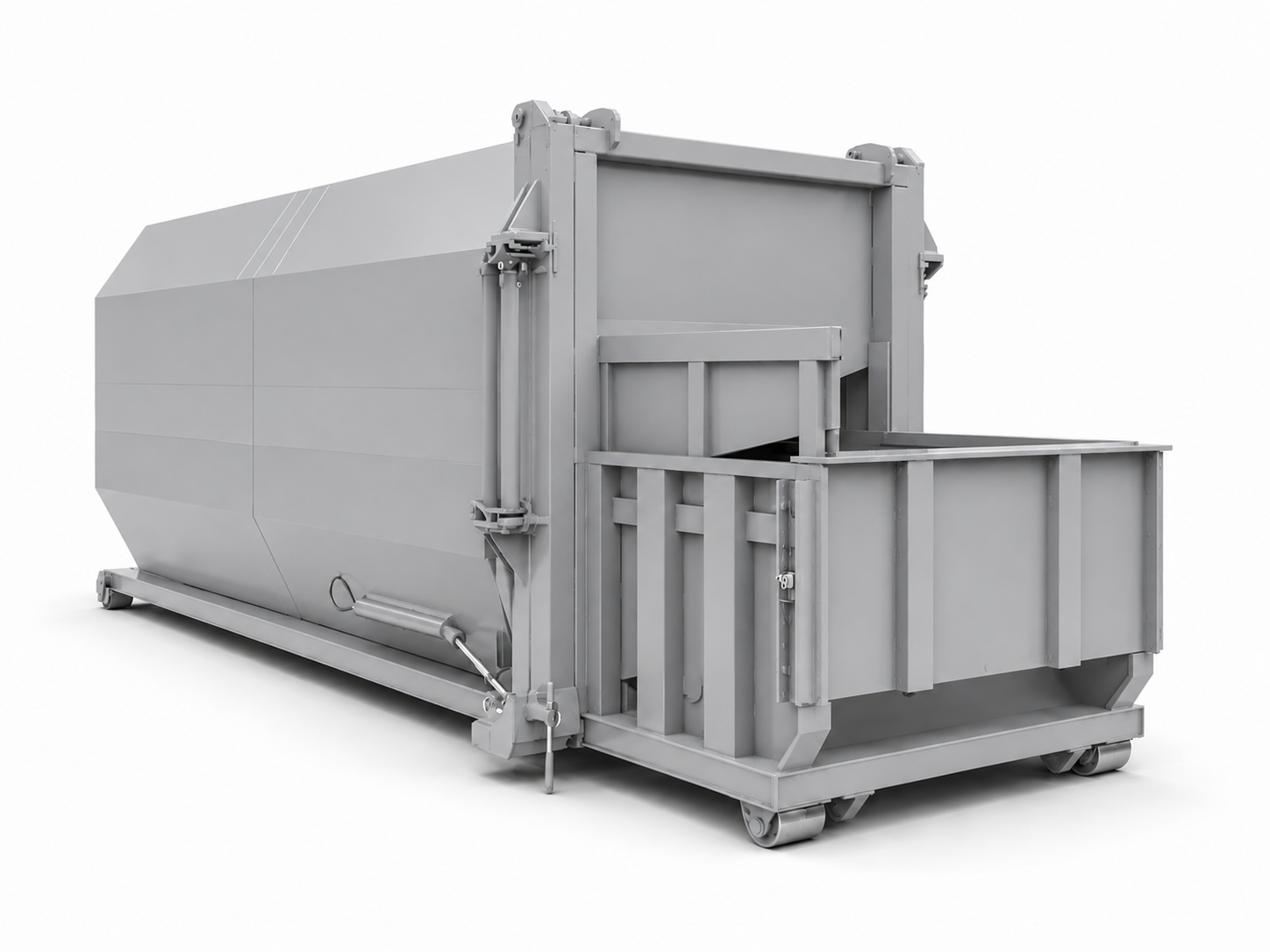

self-contained

compactor

01 / 02

Engineered for maximum durability and ease of use in residential and commercial waste collection. Our self-contained compactor feature heavy-duty steel construction and reinforced stress points to ensure long-term performance in demanding environments.

Standard Build & Durability

Capacity & Throughput:

  • Charge Box Capacity (Mfg. Rating): 2 Cubic Yards

  • Industrial Rating: 1.24 Cubic Yards

  • Clear Top Opening (L × W): 42 in Long × 57.75 in Wide

  • Capacity Per Hour: 135 Cubic Yards

​

Operating Performance:

  • Cycle Time: 33 Seconds

  • Total Normal Force: 40,800 Pounds

  • Total Maximum Force: 52,100 Pounds

  • Normal Ram Face Pressure: 22.7 PSI

  • Maximum Ram Face Pressure: 29.0 PSI

  • Ram Penetration: 14 Inches

​

Power System:

  • Electrical Motor, 3/60 – 208/230/460: 10 HP

  • Electrical Control Voltage: 120 VAC

​

Electrical Controls:

  • UL Label Panel Box

  • NEMA Type

  • All Circuits Fused

  • Standard Controls:

    • Keylock Start

    • Stop

    • Forward/Reverse Selector Switch

​

Hydraulic System:

  • Pump Capacity: 10.5 GPM

  • Normal Pressure: 1,800 PSI

  • Maximum Pressure: 2,100 PSI


Hydraulic Cylinder:

  • Bore: 4 Inches

  • Rod: 2 Inches

  • Stroke: 37 Inches


Charge Box:

  • Charge Box Slides: ¼ Inch Plate

  • Charge Box Floor: ½ Inch Plate


Ram Assembly:

  • Ram Face Plate: ½ Inch Plate

  • Ram Bottom: ½ Inch Plate

  • Ram Top: ¼ Inch Plate


Understructure:

  • Floor: 7 Gauge

  • Longsills: 2 in × 6 in × ¼ in Tubing


Container Body:

  • Container Sides: 7 Gauge

  • Container Door: 10 Gauge

  • Container Top: 10 Gauge

PRODUCT LITERATURE

Get the Full Specifications

Download our comprehensive brochure for detailed dimensions, technical drawings, and loading capacities of our rear-load line.

Download Brochure PDF
2nd page SCC Brochure.png
Structural Integrity

Warranty coverage includes qualifying defects affecting the structural integrity of the container under normal use conditions.

Warranty

Download our comprehensive warranty guide for complete coverage details, warranty limitations, and important product information. This document outlines coverage terms, liability limitations, and additional warranty conditions for McLaughlin Waste Equipment Products.

Warranty Confidence

Component Lifespan

McLaughlin Waste Equipment containers are backed by a limited two-year warranty covering defects in material and workmanship from the original date of delivery.

Download Warranty
Reliability Guarantee

Direct manufacturer support and reliable parts availability to help minimize operational downtime.
